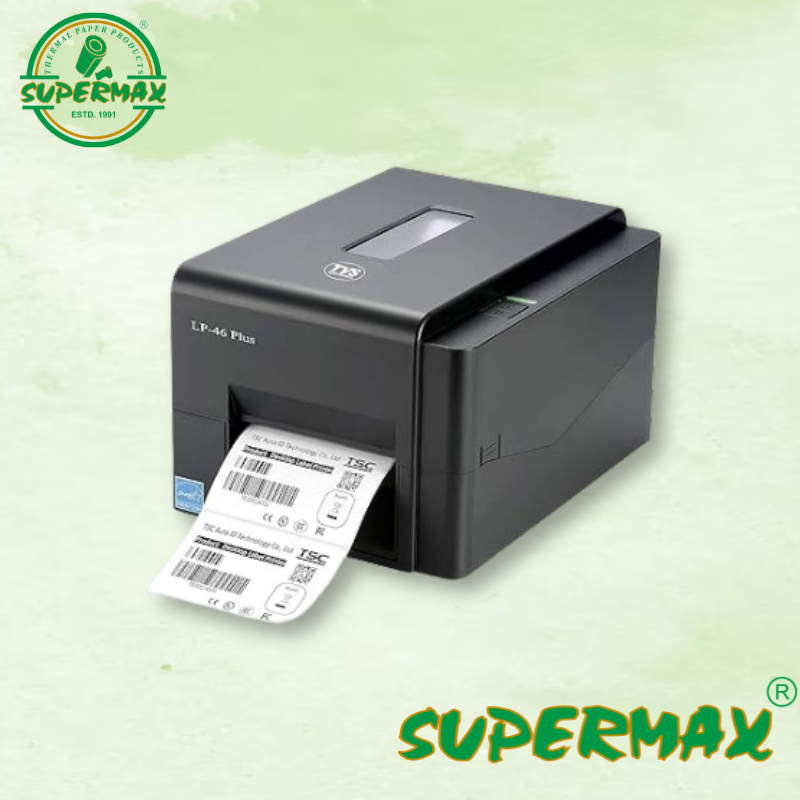

TVS ELECTRONICS LP 46 Plus Label Printer

TVS ELECTRONICS LP 46 Plus Label Printer

Rs. 17,400.00
Rs. 20,000.00 Rs. 17,400.00
Sale Sold out
Shipping calculated at checkout.

LP 46 Plus Desktop Label Printers combine performance with reliability and offers High-Resolution labels. These are appropriate for Manufacturing and Warehousing, Healthcare, Small offices, and Logistics.

SPECIFICATIONS-

Resolution-8 dots/mm 203 DPI

Printing Method:Thermal Line Printing – DirectThermal & Thermal Transfer

Max. Print width:108 mm 4.25“

Max. Print Speed:152.4 mm 6”/second

Max. Print length: 2,794 mm 110“

Physical dimension: 204 mm W x 164 mm H x 280 mm D

Label roll capacity: 127 mm 5“ OD

Ribbon: 300 m long, max. OD 67 mm, 1” core ink coated outside

Ribbon Width:40 mm ~ 110 mm 1.6” ~ 4.3”

Processor:32bit RISC CPU

Memory: 128 MB Flash memory, 64 MB SDRAM

Interface:USB, Serial and Ethernet

Power: Input: AC 100240V, 2.5A, 5060Hz, Output: DC 24V, 2.5A, 60W

Sensors: Transmissive gap sensor, Black mark reflective sensor position adjustable.

Barcode:

1D bar code:

Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 5 digits addon,Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN,PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

  • 2D bar code

GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417.

Printer Language: TSPLEZD Compatible to EPL, ZPL, ZPL II, DPL

Media type:Continuous, diecut, black mark, fanfold, notched outside wound

Media width: 20 ~ 112 mm 0.8“ ~ 4.4“

Media thickness: 0.06 ~ 0.19 mm 2.36 ~ 7.48 mil

Media core diameter:25.4 ~ 38 mm 1” ~ 1.5”

Label Length: 5-25, 400mm

Environment Condition: Operation: 5°C ~ 40°C, 25 ~ 85% noncondensing

                                          Storage: ~40°C ~ 60°C, 10 ~ 90% noncondensing
