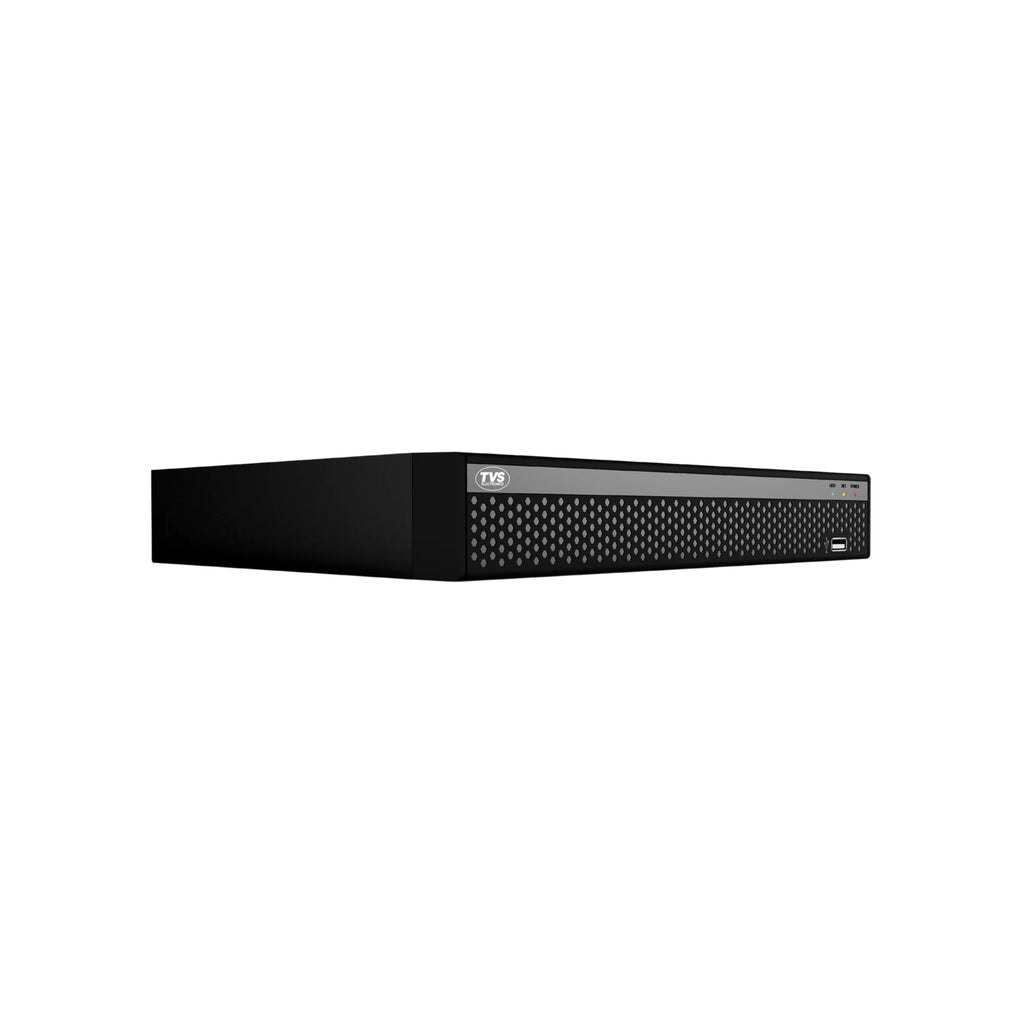

TVS Electronics SR-509L Star 9 Channel Network Video Recorder (5MP Ultra HD Support, AI Management, H.265+ Compression, 8TB HDD Support)
The TVS SR-509L Star is a professional-grade Network Video Recorder (NVR) designed for high-definition IP surveillance. Capable of supporting up to 9 Channels of IP camera input at resolutions up to 5MP, this recorder ensures that your security footage is captured with exceptional clarity and detail.
Equipped with advanced AI Management functions, the SR-509L Star allows for smarter monitoring and faster incident response. It features Hexaplex Operation, enabling you to perform preview, recording, playback, live viewing, backup, and remote viewing simultaneously without any lag. With H.265+ compression technology, you get high-quality video while saving significant storage space on hard drives up to 8TB.
Product Specifications
| Feature | Details |
| Model | SR-509L Star |
| IP Camera Input | 9 Channel (Supports 5MP, 4MP, 3MP, 1080P, 960P, 720P) |
| Incoming Bandwidth | 60Mbps |
| Compression | H.265 / H.265+ / H.264 / H.264+ |
| Video Output | HDMI & VGA (Up to 1920x1080 Resolution) |
| Storage | 1x SATA Interface (Supports up to 8TB HDD) |
| Network Interface | 1x RJ-45 10/100Mbps Self-adaptive Ethernet |
| Operations | Hexaplex (Live, Record, Playback, Backup, Remote, Preview) |
| AI Features | Built-in AI Management Function |
| USB Ports | 2x USB 2.0 |
| Audio | 1CH 3.5mm Headphone Socket Output |
-
Ultra HD Monitoring: Supports high-resolution cameras up to 5MP for crystal-clear evidence.
-
Smart AI Management: Intelligent software features to enhance security monitoring and data analysis.
-
Massive Storage Capacity: Support for an 8TB SATA hard drive allows for weeks of continuous high-def recording.
-
Efficient Playback: Smart search and Hexaplex operation make finding and exporting footage effortless.
-
Future-Proof Compression: H.265+ technology reduces data costs and bandwidth usage by up to 70%.
