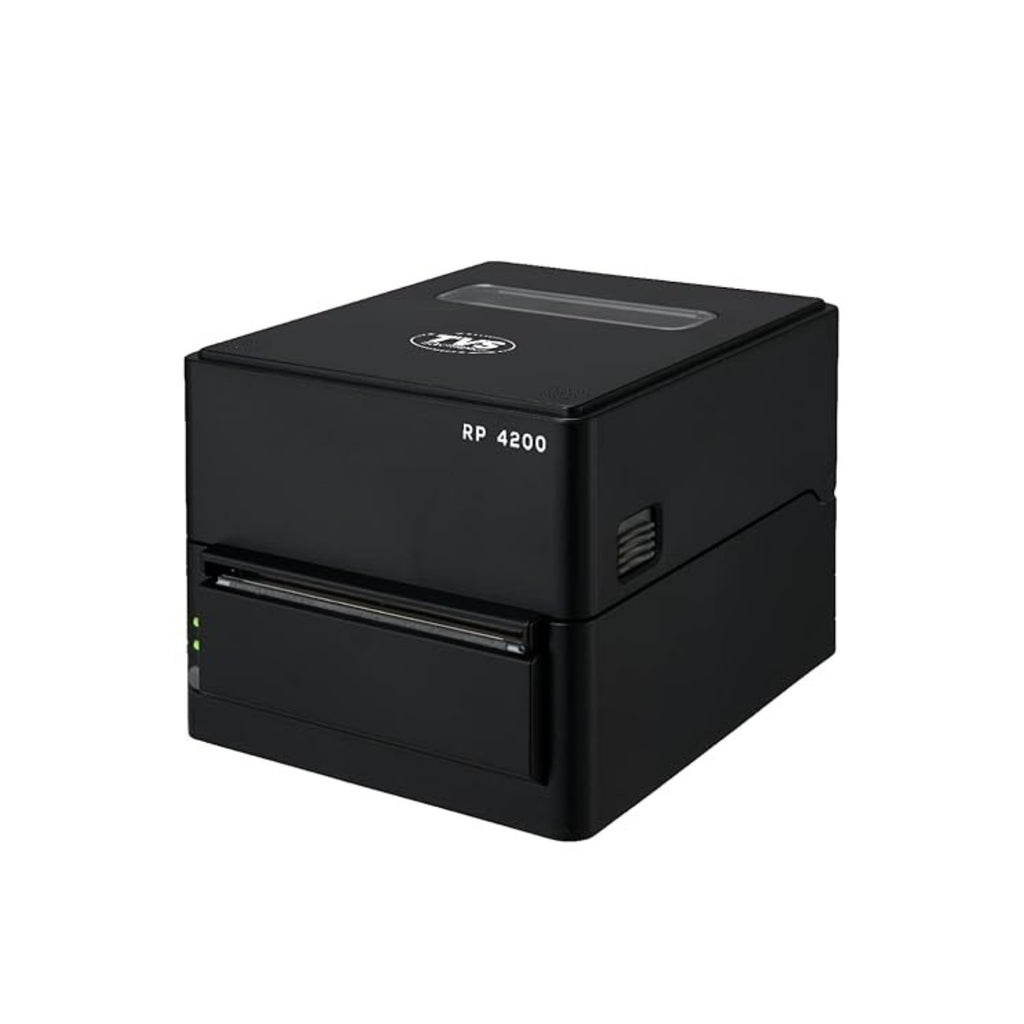

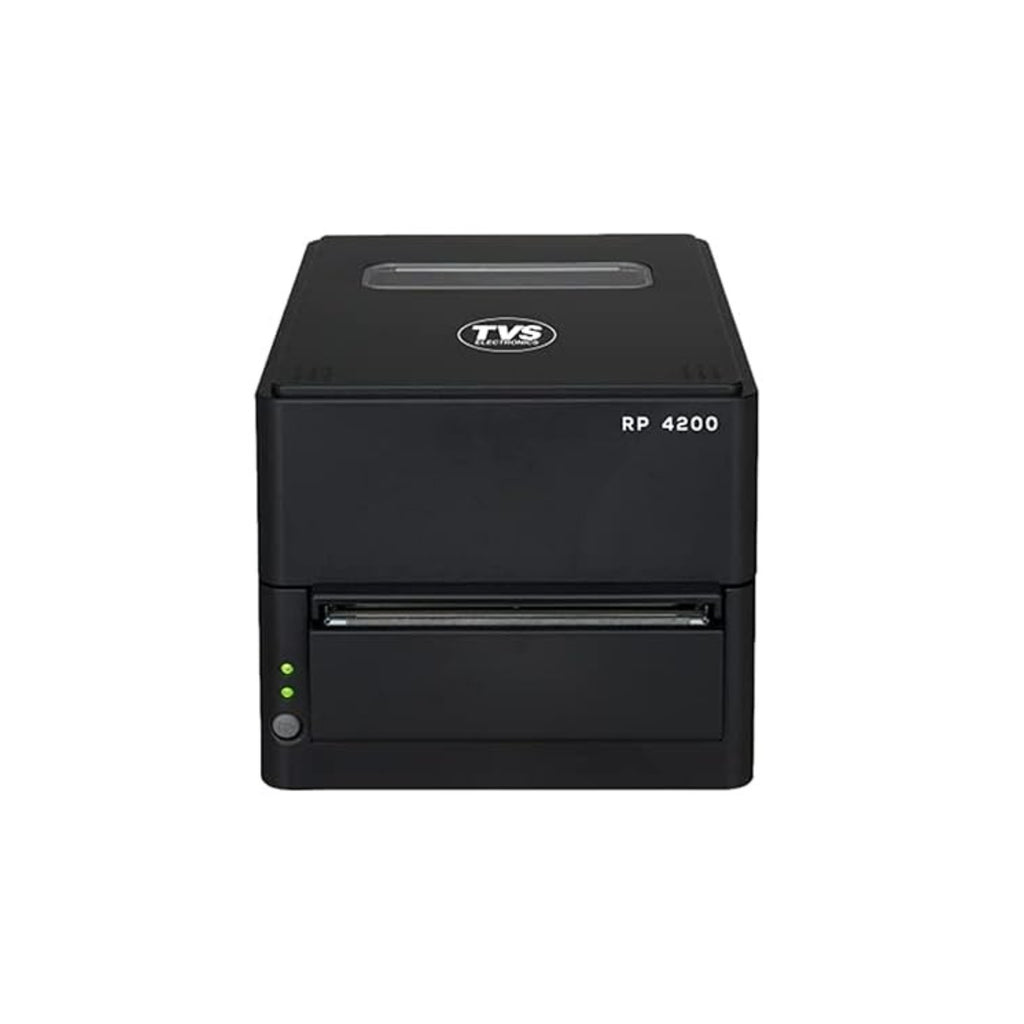

TVS ELECTRONICS RP 4200 Thermal Receipt Printer
TVS ELECTRONICS RP 4200 Thermal Receipt Printer
This printer is a definite plus for retail business as it accelerates the billing process, by reducing transaction time and cutting back on long queues.
SPECIFICATIONS-
Printing Method: Direct Thermal Line Printing
Max. Print Speed: 200mm/sec
Dot Density:203 dpi
Dot Pitch: 8 x 8 dots / mm
Character per line: Font A – 69 columns; Font B – 92, columns; Font C – 104 columns, [at 112 mm paper width]
Character set: Alpha numeric characters, International characters,PC437/850/852/857/858/860/863/864/865/866,WPC1252,Katakana,Thai code 11/18 (1 Pass/3 pass), TCWN-3,Kanji,kana,extended characters,JIS X0213,GB18030,BIG5,KS Hangul, EUC Hangul
Barcode fonts: UPC E/A, JAN (EAN)13 digits/8 digits,ITF, Code 39, Code 128, CODABAR(NW7), CODE 93, PDF 417, QR code,GS1 Databar
Paper width:112 mm
Paper Thickness:Paper thickness : 68-85 µm
Paper roll diameter: 112 max
Printing width: 104 mm
Interface: USB, Serial
User memory: 384 KB(Capable of Storing user defined characters &logos
Bufferr size:4 K bytes/ 45 bytes
Emulation:ESC/POS
Driver:Windows 7, Vista, 2K, XP, Linux, OPOS, VCOM
Cash drawer: 2 Drawers
Cutting method: Full / partial cut
Supply Voltage: AC 100 ~ 240V, 50 ~ 60Hz; DC 24V , 2.5 A
Operating Temperature:+5 to +40°C
Storage Temperature -20 to +60°C
