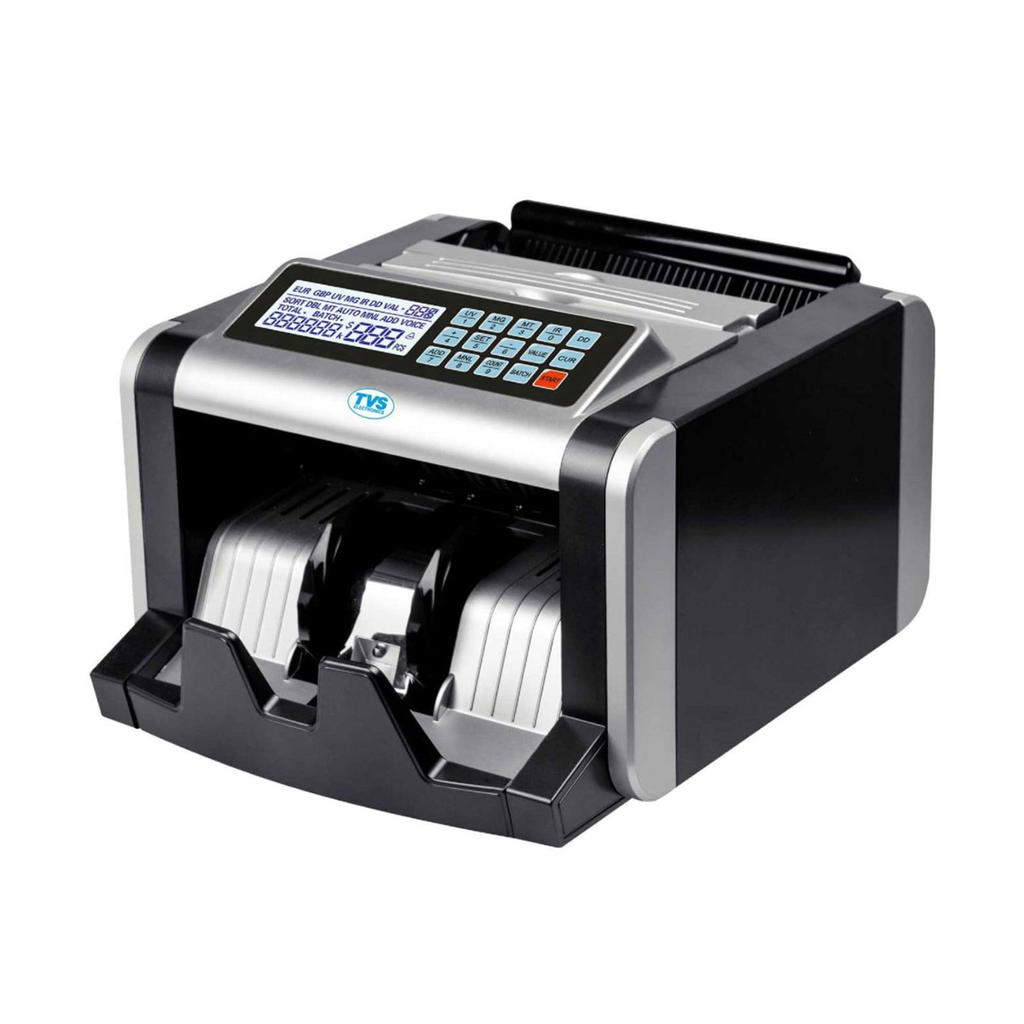

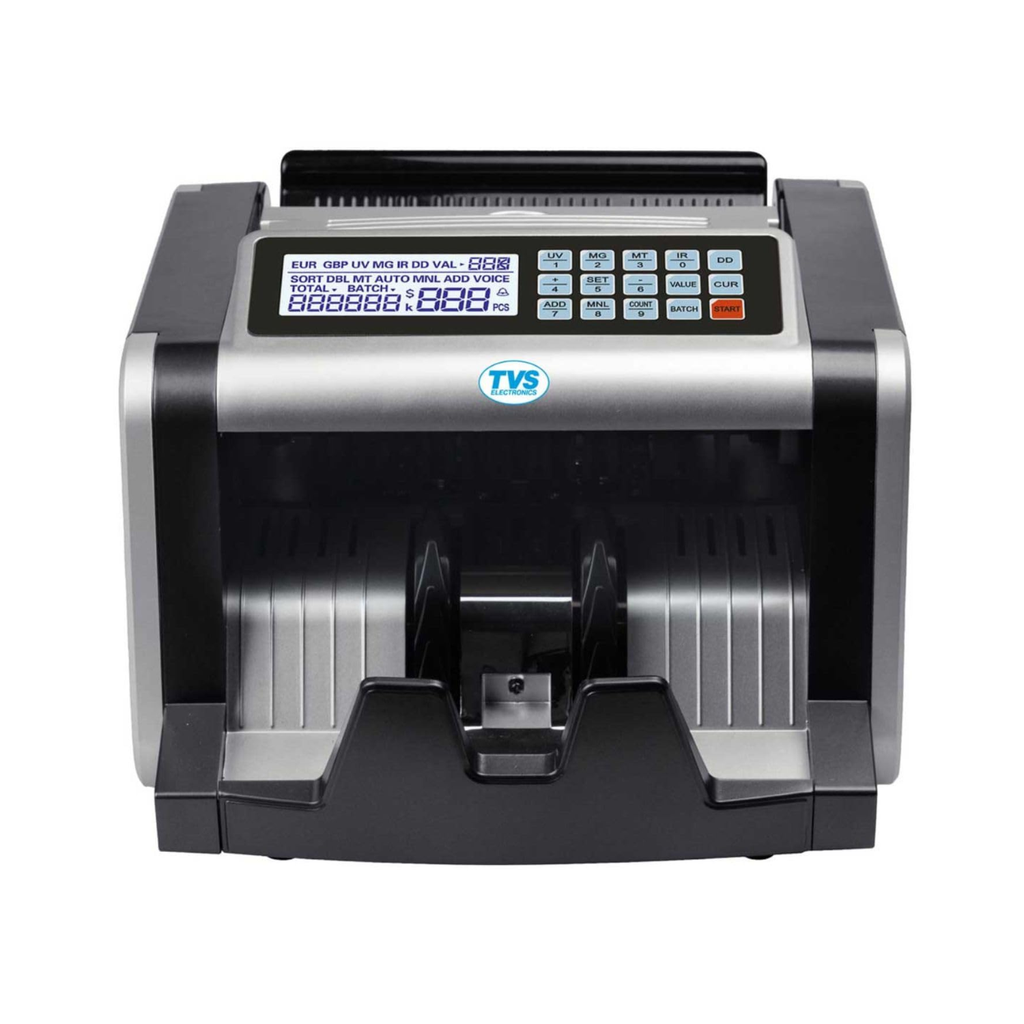

TVS CC 232 Classic Plus Currency Note Counting Machine - Fake Note Detector, UV MG IR MT DD Sensors, High Speed Cash Counter (Black)

High-Speed 1000 Notes/Min Counting Engine, Advanced Multi-Sensor Counterfeit Detection (UV, MG, MT, IR & DD), LCD Color-Changing Alert Display, Add & Batch Modes, Heavy-Duty Motor Build

Streamline cash handling and secure daily settlements against counterfeit currency with the TVS CC 232 Classic Plus Currency Note Counting Machine. Engineered for high-volume cash counters in retail stores, wholesale hubs, banks, financial institutions, and fuel stations, this heavy-duty currency counter delivers accurate, high-speed counting with complete fraud detection.

Equipped with advanced sensor technology—including Ultraviolet (UV), Magnetic (MG), Magnetic Thread (MT), Infrared (IR), and Dimension Detection (DD)—the CC 232 Classic Plus instantly stops and alerts operators via an LCD color change and audible beep alarm upon detecting fake, half, chained, or double notes. Designed with an auto-start mechanism, denomination value calculating feature, and software update support via RS-232, it provides smooth, error-free cash management.

✨ Key Features:

• High-Speed Money Counting: Operates at 1000 notes per minute to process large cash volumes rapidly.

• Advanced Multi-Sensor Detection: Uses UV, MG, MT, IR, and DD sensors with color-changing LCD alerts and beep alarms to isolate counterfeit notes.

• Batch, Add & Value Calculation: Supports batch preset bundling, cumulative add functions, and total value calculation based on selected denomination.

• Abnormal Note Detection: Automatically checks for half-notes, chained notes, and double-note errors during continuous feeding.

• Auto/Manual Start & Software Upgradable: Offers automatic start/stop control and RS-232 port support for easy software updates.

📐 Technical Specifications:

• Brand: TVS Electronics

• Model Name: CC 232 Classic Plus

• Device Type: Fully Automatic Loose Note Currency Counting Machine

• Counting Speed: 1000 Notes / Minute

• Hopper Capacity: 200 Bills

• Stacker Capacity: 200 Bills

• Counterfeit Detection Sensors: UV (Ultraviolet), MG (Magnetic), MT (Magnetic Thread), IR (Infrared), DD (Dimension)

• Counting Modes: Auto/Manual Start, Batch Mode, Add Mode, Denomination Value Calculation

• Display Type: High-Clear Main LCD Display with Color Alert Backlight

• Size of Countable Notes: 50x110 mm to 90x170 mm

• Thickness of Countable Notes: 0.075 mm – 0.15 mm

• Interface / Update Port: RS-232 Port

• Power Supply: AC 220V ±10%, 50Hz (Power Consumption: ≤80W)

• Dimensions & Net Weight: 280 x 255 x 190 mm | 4.50 kg

• Color Profile: Black / Dark Grey
