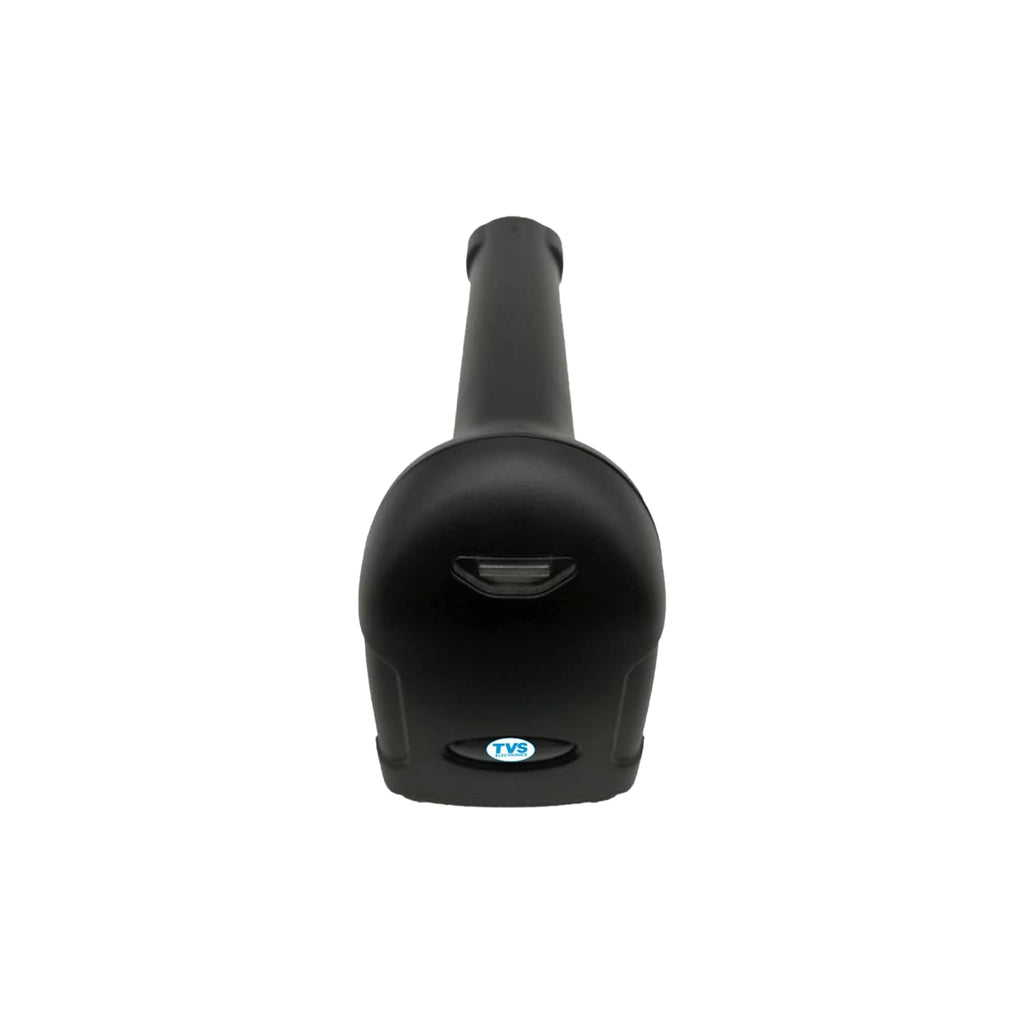

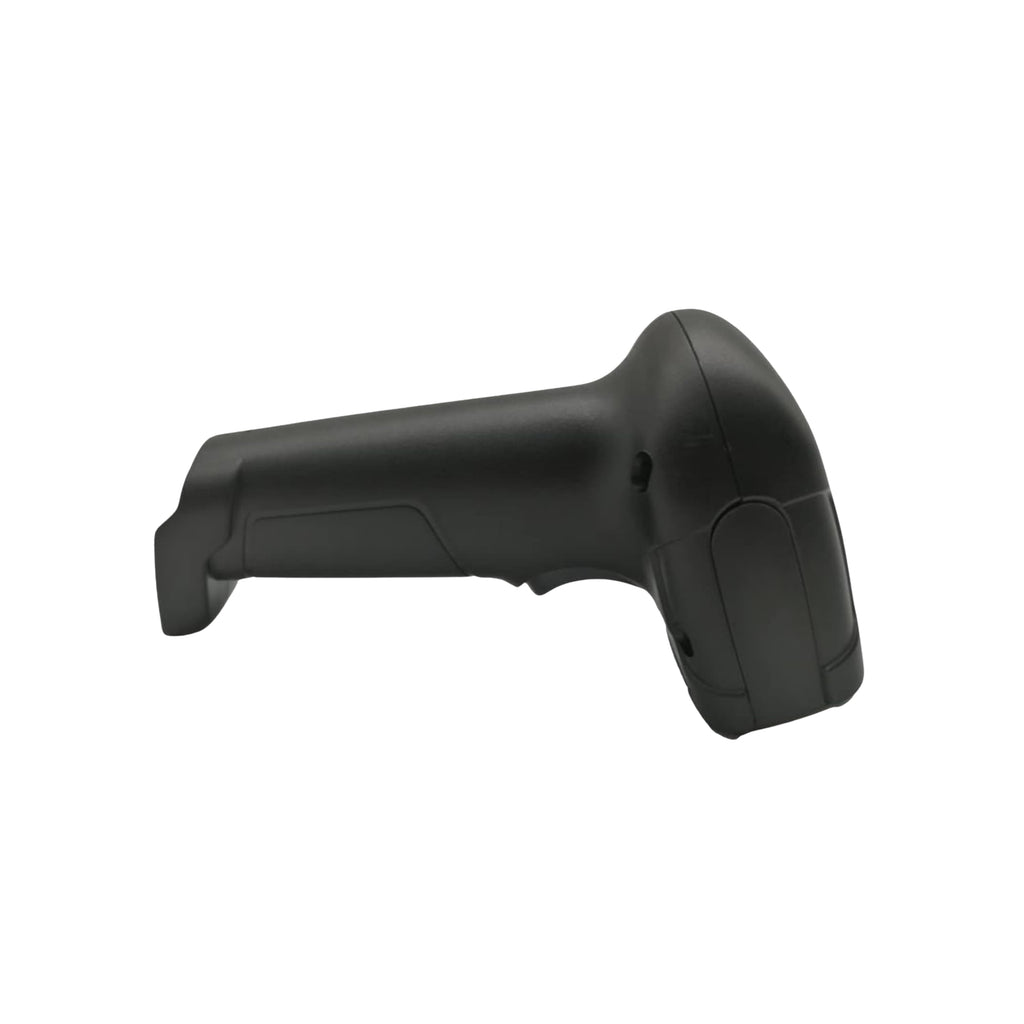

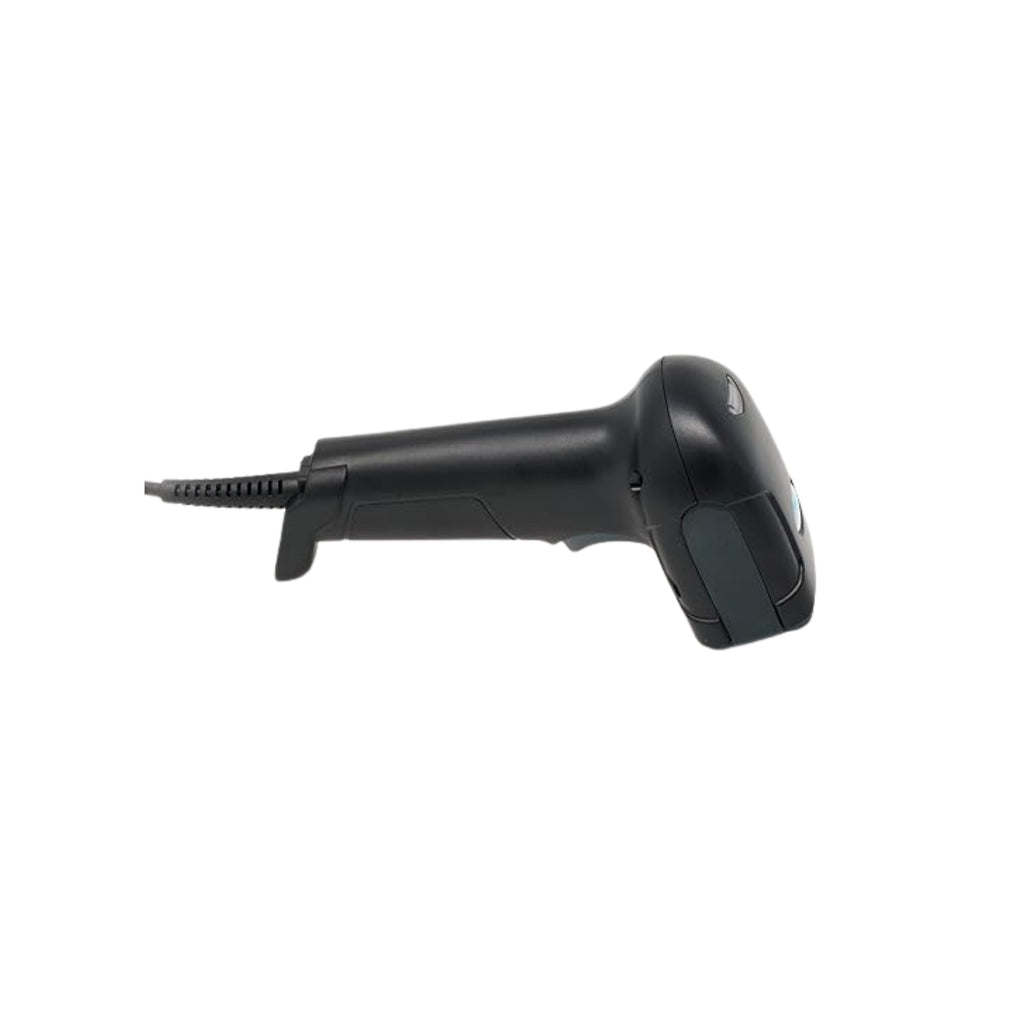

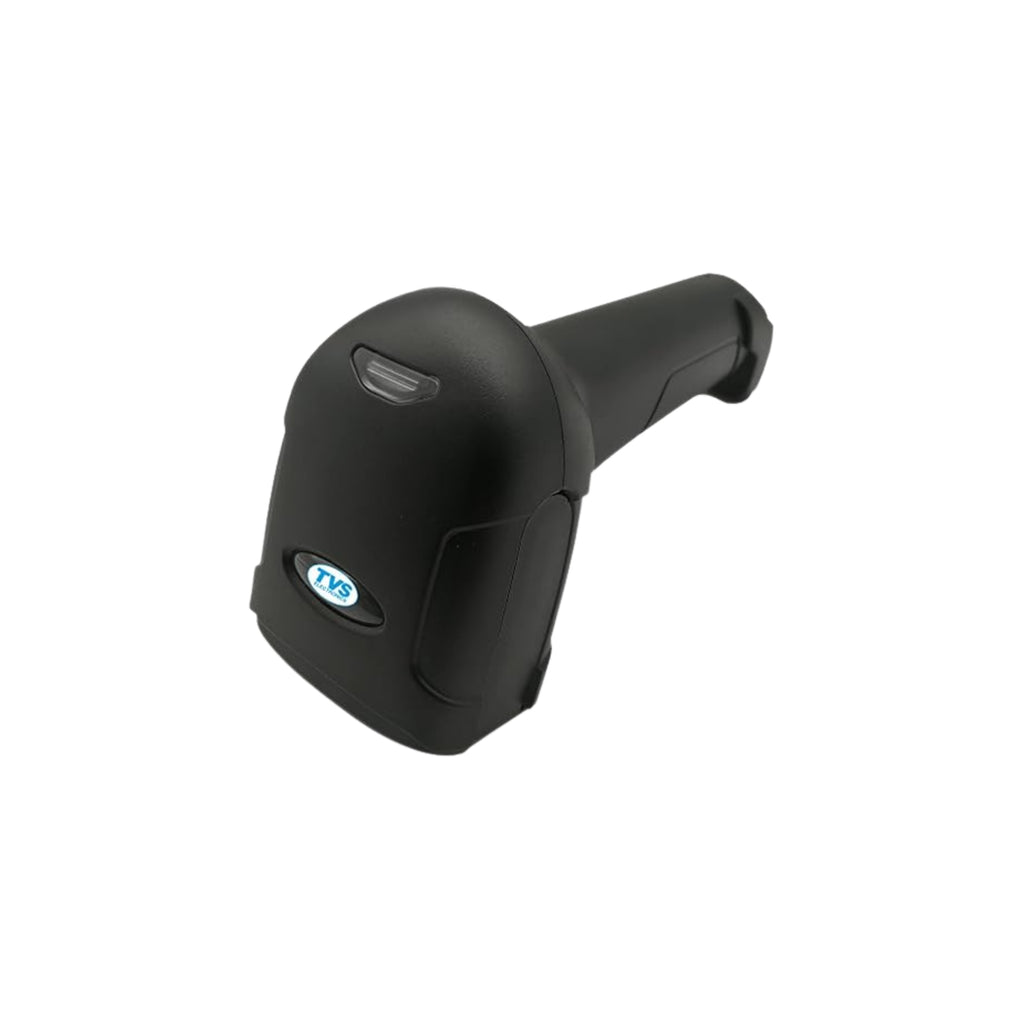

TVS Electronics BS-C103G Barcode Scanner
Sale price
Rs. 1,850.00
Regular price
Rs. 2,100.00
This lightweight scanner delivers superior performance and outstanding durability. It is an ideal solution for supermarkets, shopping malls, warehouses, and other environments.
SPECIFICATIONS
Processor type: ARM32-bit
Operating Freq:24.5 MHz (Internal)
Sensor: Linear CCD Sensor
Scan mode:Manual/Auto sense
Alarm mode:Red light alarm, Buzzer alarm
Scan rate: Smart detect up to 350 scans/second
Resolution:3mil/0.1 mm@PCS90%
Print contrast ratio: 20%
Light level:Vi sible red light 632 nm LED
Scan depth of field:
6mil (0.127mm) 40~190mm
8mil (0.2mm) 35~210mm
10mil (0.26mm) 30~300mm
13mil(0.33mm) 30~350mm
20mil (0.5mm) 30~400mm
Barcode type:
Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11
Code 39, Code 93, code 128/EAN 128, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, UPC/EAN.
Voltage:DC+5V±5%
Operating current: 170mA (working) ; 50mA (standby) ; 150mA (operating)
Interfaces:USB, RS 232, USBCOM
Light source: 40,000 hours
MTBF (Calculated): 80,000 hours
Operating temperature: -10 °C to 50 °C
Storage Temperature:-20 °C to 60 °C
Humidity :20% to 95% (Non-condensing)
ESD:5,000 Lux max
Drop Durability: Designed to withstand 1.8m drops
Color: Black
