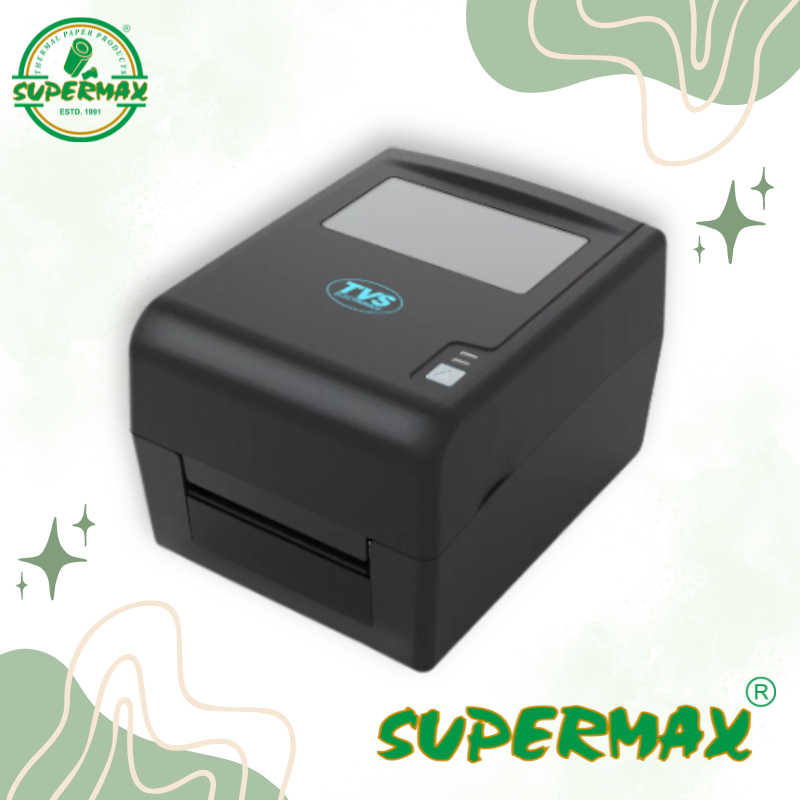

TVS RP 3230 Receipt Printer 3", 203 DPI Thermal Line Printer
TVS RP 3230 Receipt Printer 3", 203 DPI Thermal Line Printer
Couldn't load pickup availability
RP 3230 thermal printer comes with different wired options such as USB, Serial, Ethernet and cashdrawer port which makes it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing, thus reducing long queues.Equipped with three at a glance LEDs for visualizing printer status.
SPECIFICATIONS:
Print Model : RP 3230
Printing Method: Direct thermal printing
Resolution: 203 DPI (8dots/mm)
Print Width: 72mm / 48mm
Print Speed: Max. 230mm/s
Emulation: ESC/POS
Page Mode: Support
Page Type: Thermal continuous paper
Paper width:79.5±0.5mm/57.5±0.5mm
Paper Container: Max. 83mm
Paper Feed: Upward feed direction
Standard: USB Type-B, Ethernet, Serial, Cash drawer
1D barcode: UPC-A, UPC-E, Code 39, Code 93, Code] 28, EAN8, EANI3, Interleaved2 of 5,Codabar
2D barcode: QR Code,PDF417
Chinese Character: Simplified/Traditional: (24 x 24 dots)
English Character: ASCII: Font A 12×24, Font B 9×17
Code Page: 47
Graphics:Support bitmap printing and bitmap downloading with different density and user defined (Max. 64K for each bitmap and the total bitmap cannot exceed 512K)
Buzzer: Internal buzzer kitchen bell(optional)
Sensor (Standard): Paper end, cover opening, cutter jam, TPH over-temperature
Sensor (Optional): Black mark sensor
RAM: 4 MB
Flash: 4 MB
Input Power: ACI00V-240V, 50/60Hz
Output Power: DC 24V 2A
Driver: Windows 7/8/10, Windows Server 2008/2012/2016 Linux, Javapos,OPOS,MacOS
Utility Tool: Windows 7/8/10, Windows Server 2008/2012/2016
TPH Life: 100 km
Cutter Life:1,500,000 times
Operating: 0-45°C / 5-95%RH No condensation
Storage: 20-70°C / I5-95%RH No condensation
Certification: BIS
