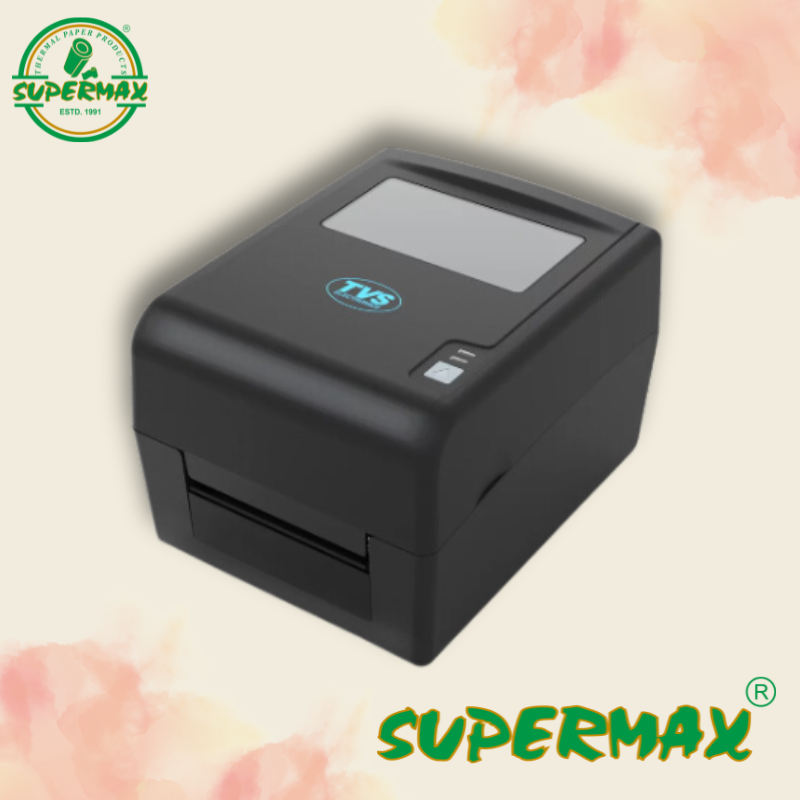

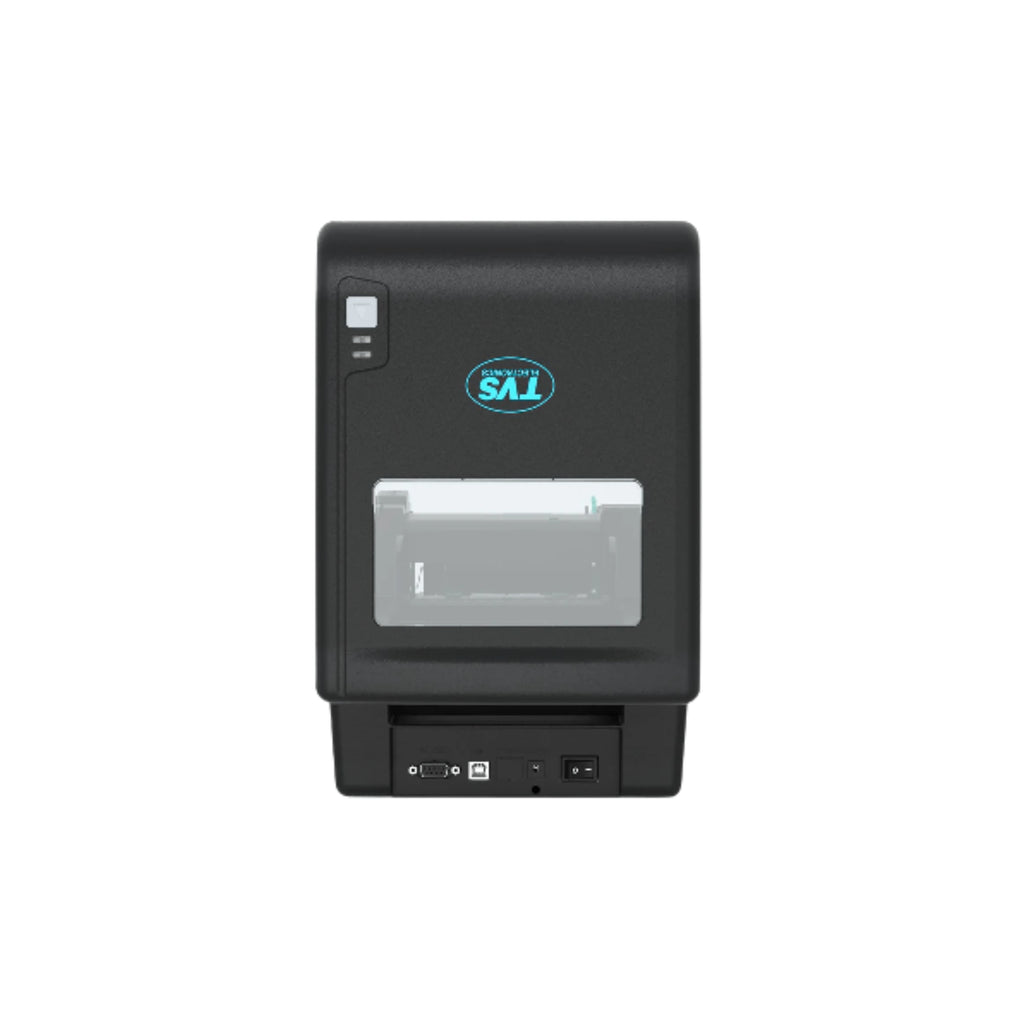

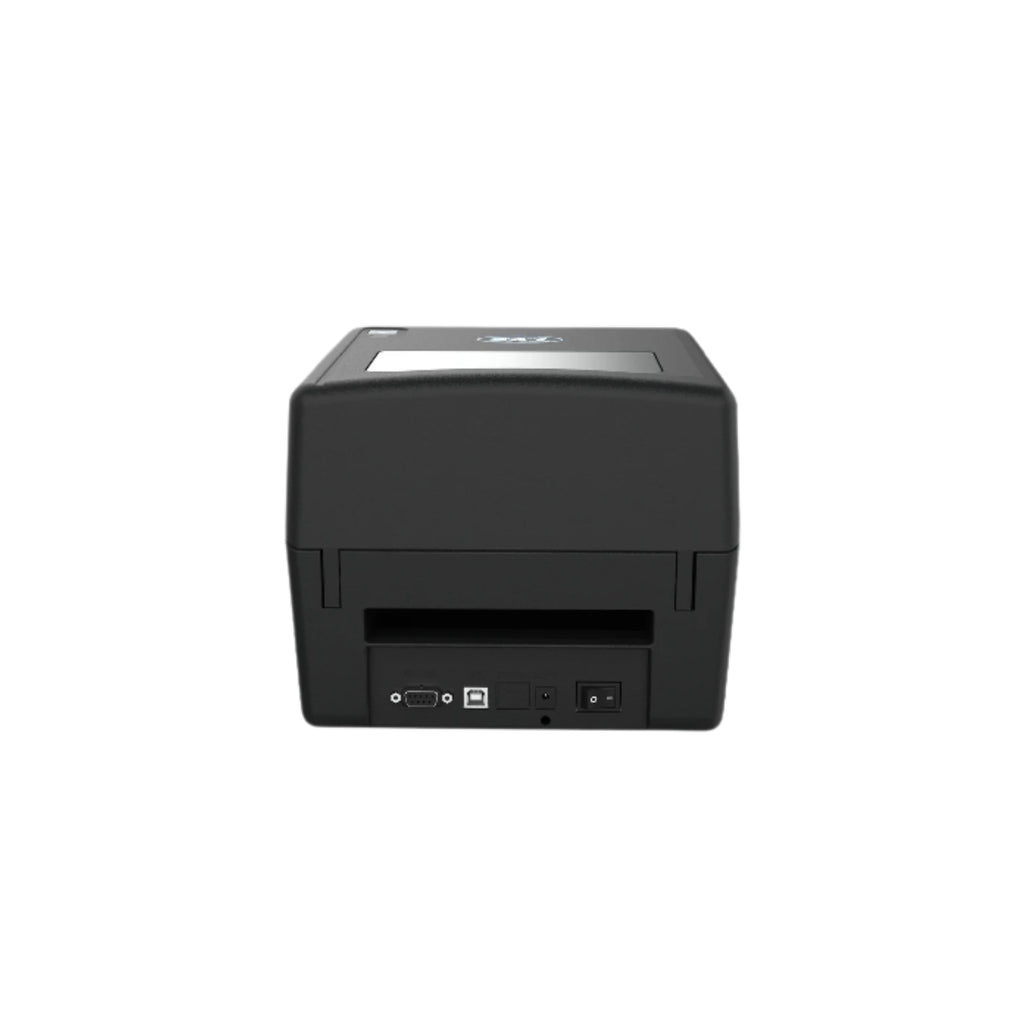

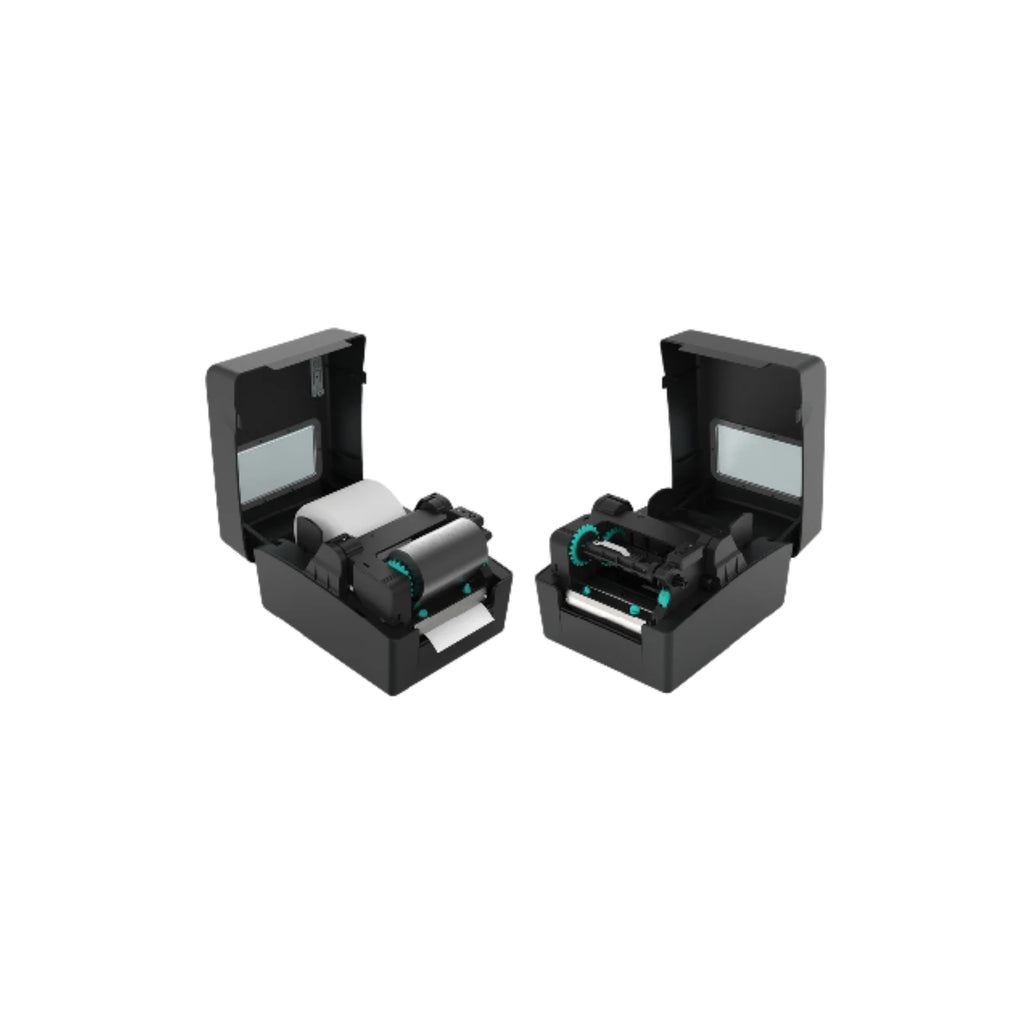

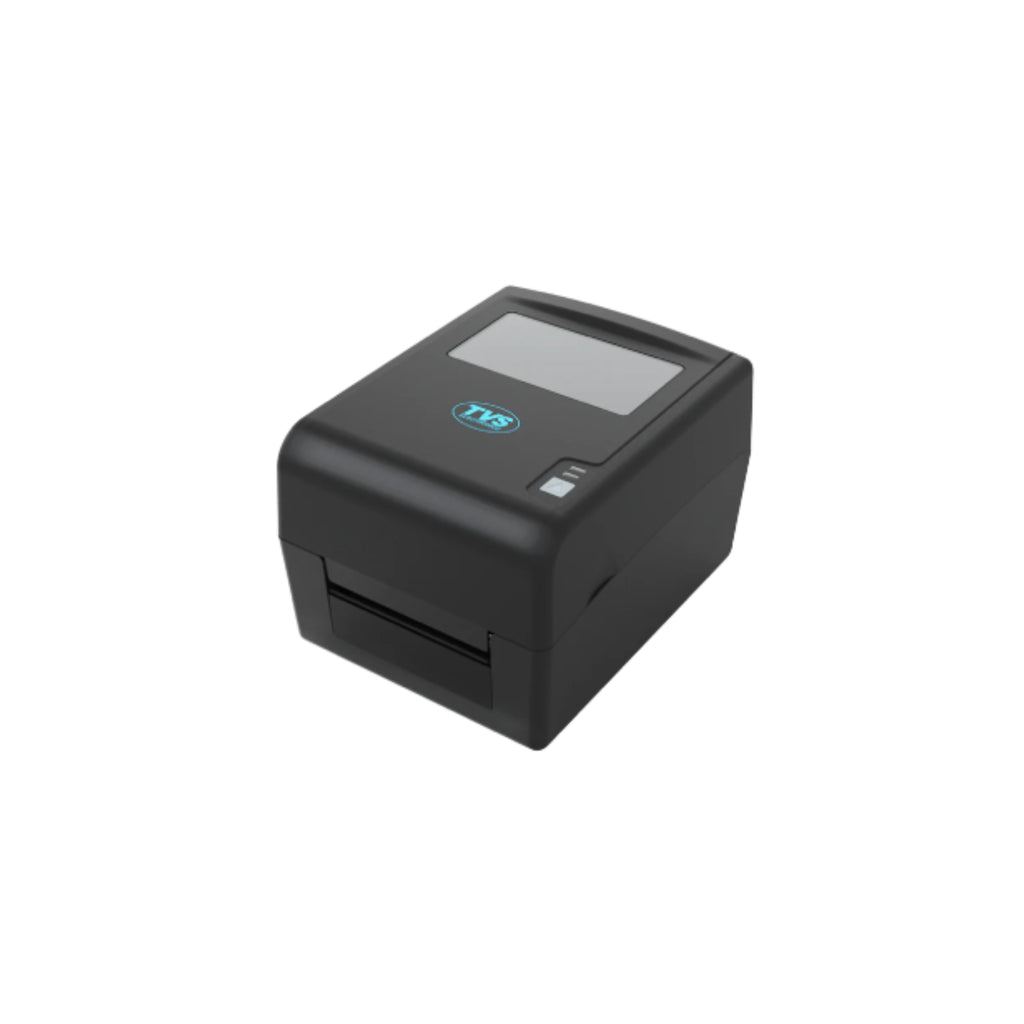

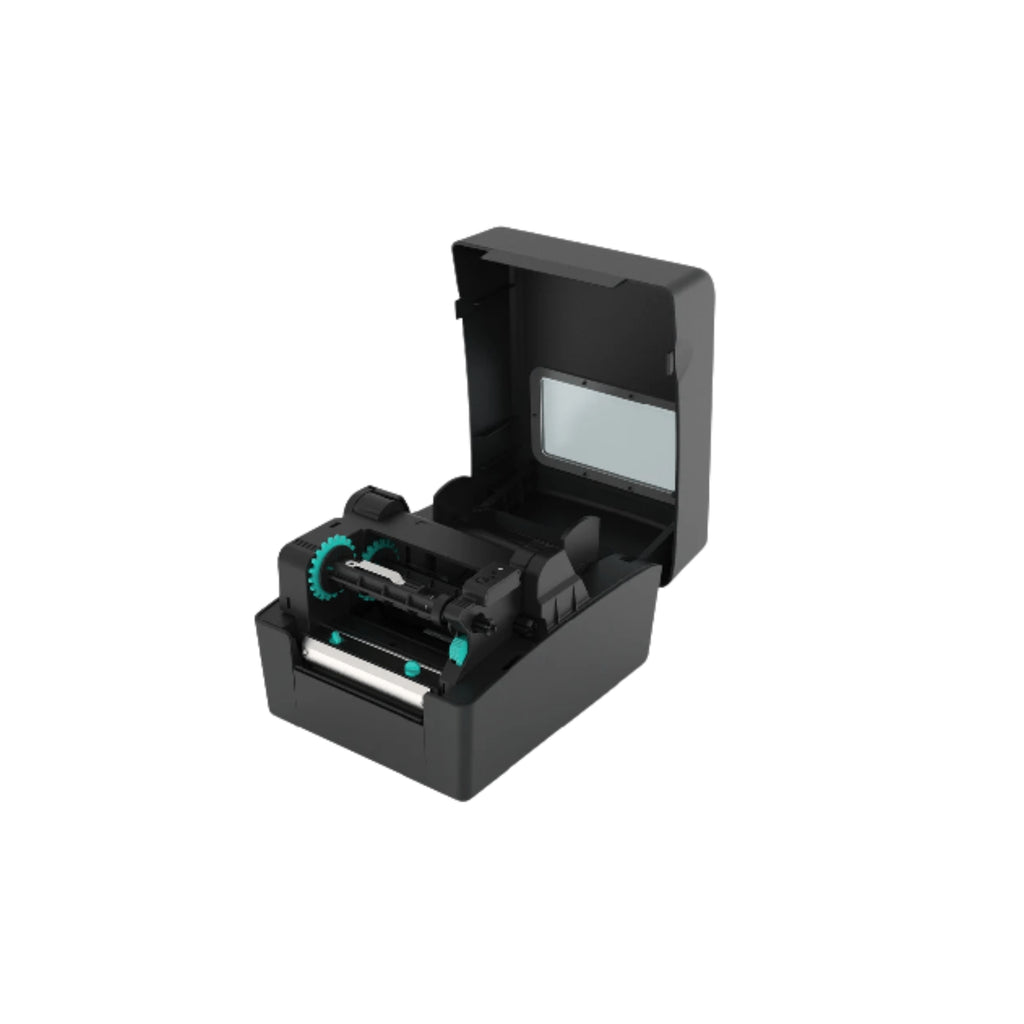

TVS ELECTRONICS LP 46 Dlite 4” Inches Thermal Label Printer
TVS ELECTRONICS LP 46 Dlite 4” Inches Thermal Label Printer
Couldn't load pickup availability
LP 46 Dlite Barcode Printer is an advanced, user-friendly solution for all your high-resolution label and barcode printing needs. It is designed for convenience and efficiency, making it perfect for various industries such as manufacturing, warehousing, shipping, small offices, and retail. The printer’s space-saving design, quick installation process, and transparent window for easy monitoring make it an ideal choice for businesses looking to streamline their printing operations. With the USB interface, increased storage capacity, and high ribbon capacity, LP 46 Dlite is built to handle demanding label printing tasks easily.
SPECIFICATIONS:
Print method: Thermal/Thermal transfer
Resolution: 203DPI | 300DPI
Print width: 108mm(Max.) | 106mm (Max.)
Print speed: 152mm/s(Max.) | 102mm/s(Max.)
MemorySDRAM: 32MB,
Flash:16MB(64MB optional)
Sensor: Photoelectric sensor
TPH temperature detection: Thermistor
TPH position detection: Microswitch
Interface: Standard USB port
Optional: RS232 serial port, Ethernet, Bluetooth, WiFi (Bluetooth or WiFi)
CPU: 32bit RISC MCP
Barcodes:1D: Code39,Code93,Codabar,Code128(Subsets A, B, and C),EAN-13,EAN-8,UPC-A,UPC-E,UPC/EAN Extensions, Planet Code, Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,G51 Data Bar(RSS).
2D: PDF 417,MicroPDF417,QR Code,DataMatrix,MaxiCode,GS1 Composite.
Character enlargement/rotation: Rotate (0°, 90°, 180°, 2701 Enlarge (1-10x)
Vector fonts support stepless scaling.
Paper thickness: 0.06-0.25mm
Ribbon length: 300m(Max.)
Ribbon ID: 12.7mm/25.4mm
Button, Indicators: 1 button,2 indicators
Input: 100-240V AC, 50-601-b
Output: 24V DC, 2.5A
Operation conditions: 5-45°C, 20 – 90%RH(40°C)
Storage conditions: -40-60°C, 20 – 93% RH(40°C)
Dimensions: 280mm(L) x218mm(VV)x180mm(H)
