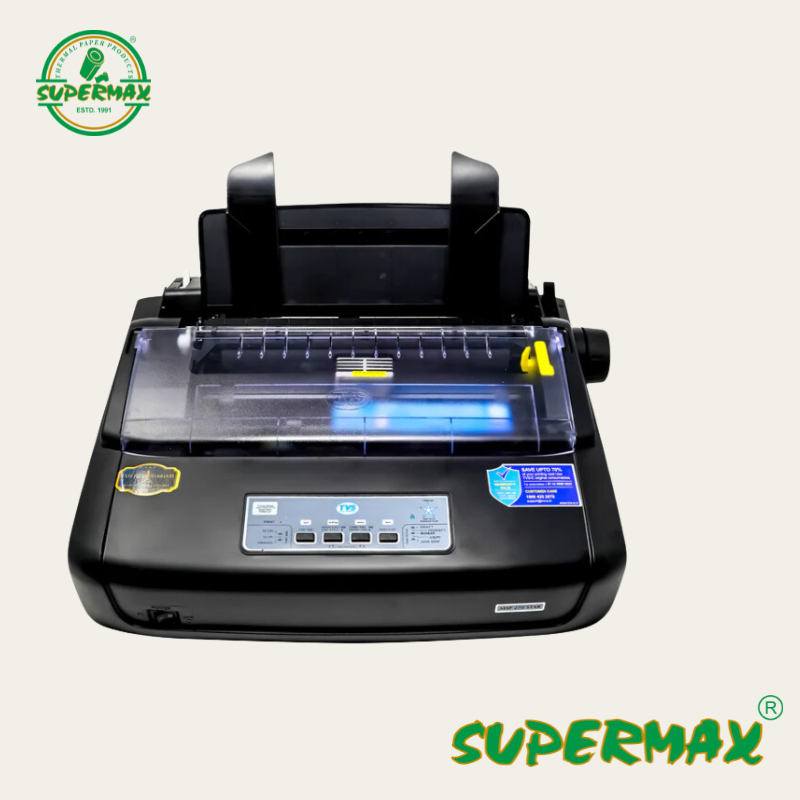

TVS MSP 270 CLASSIC

TVS MSP 270 CLASSIC

Rs. 10,500.00
Rs. 12,000.00 Rs. 10,500.00
Sale Sold out
Shipping calculated at checkout.

Get your printing jobs done with ease using the TVS MSP 270 CLASSIC printer. With its fast and efficient printing capabilities, you can finish your work in no time. Its classic design adds a touch of nostalgia and charm to your workspace. (No more excuses for procrastination

SPECIFICATIONS

Print Method

Serial Impact Dot Matrix

Number of Pins in Head

9 pins

Print Direction

Bi-directional

Control Code

ESC / P, IBM Proprinter

Print Width

80 Column

Print Head Life

200 Plus Million Characters
Print Speed

High Speed Draft

10 / 12 / 15 cpi 350/ 360 / 400 cps

Draft

10 /12 /15 cpi 270 / 320 / 375 cps

NLQ

10 / 12 / 15 65 /75 /75 cps

Print Characteristics

Character Sets Resident Printer font


Draft

Draft

Near Letter Quality

Roman, Sans Serif, Script

Resident Barcode Fonts

Code 3 of 9

Printable Columns


Pitch

10/ 12/ 15/ 17/ 20 cpi


80/ 96/120 / 137/ 160 cpl

Paper Handling


Paper Path Tractor / Manual

Top, rear and bottom

Continuous Tractor

Convertible push and pull

Cut Sheet (Single Sheet)

3.5 -10″

Cut Sheet Width

3.5 -10″

Paper Thickness

0.3 mm

Continuous Paper

3.5 -10″

Roll Paper


Paper Feeding

Standard

Friction, Push Tractor

Copies

1+3 with carbon

Line Spacing

“4.23mm (1/6″”) or programmable in increments of 0.118mm (1/216″”)”

Input Data Buffer

100 KB

Interface

Bi-directional parallel
(I pEE-1284 ) nibble mode suported
USB 2.0 Full-Speed Serial (Optional)

Ribbon Cartridge


Standard

“Patented TVS-E ribbon cassette with user replaceable Ink bank

Reliability


Mean Time Between Failure (MTBF)

15000 POH

Acoustics

55 dB (A) in ISO 7779 Sonic Pattern

Emulation

EPSON ESC/P,
IBM Proprinter

Control Panel

4 switches and 5 LEDs

Environmental Conditions (Operating)


Temperature

(+5 C to +45C)

Humidity

10% to 80%

Electrical Specification


Rated Voltage

90V – 270V AC

Rated Frequency

47 -63 Hz

Power Consumption


Operating

34W – Self test

Standard by

12 W

Printer Driver / Utility


Operating System

“Windows 9X, NT 4.0, ME, 2000, 2003, XP, VISTA, Windows 7, Linux”

Electronic Guide

HTML Based

Dimesions

Size ( W D H) mm

433 X379 X147 mm

Weight

5.7 kg

Warranty

1 year
