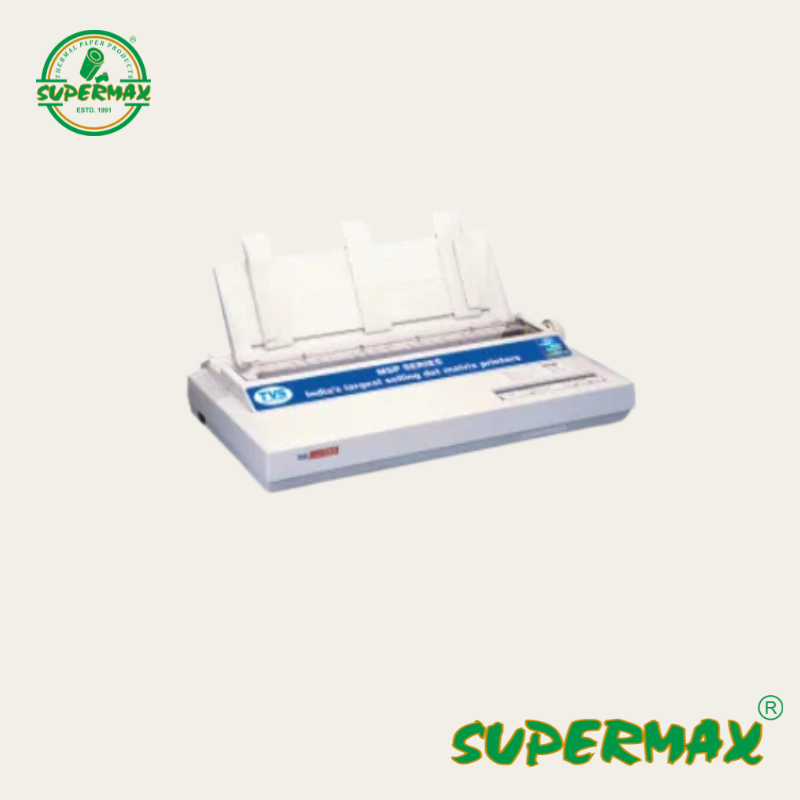

TVS MSP 245
TVS MSP 245
Couldn't load pickup availability
MSP 245 is the largest selling printer for financial applications to print Account Statements, ledgers, and Invoices. Its wide operating voltage makes it more suitable to combat challenging power conditions.
SPECIFICATIONS
Print Method
Serial Impact Dot Matrix
Print Direction
Bi directional Logic seeking
Print Head
Type 9 Wire
Print Width
136 Column
Print Head Life
200 million characters
Positioning speed
450 cps
Character Pitch cpi
10 12 15
High Speed Draft cps
300 – 336
Draft cps
250 300 375
Letter quality cps
50 60 75
High Speed Draft
Standard 10 and 12 cpi
Draft
Standard 10, 12, 15, 17 and 20 cpi
Letter Quality
Roman, Sans Serif, Script
Resident bar code
Code 3 of 9
Paper path standard
Top, Rear and Bottom
ContinuousTractor feed standard
Convertible push & Pull
Continuous form width
4 – 16″
Cut sheets width
7.2 – 16.1″
Paper thicknessmax
Tractor feed 0.3mm
Friction feed 0.3mm
Copy capability
1+4 with carbon
Type
Patented TVS ribbon cassette with user replaceable ink bank
Color
Jet Black
Ribbon Life
40 Million characters with 3 additional inkbanks
Cassette Refill mode
Through Inkbank
Inkbank life
10 Million characters
Input Buffer Kilo bytes
100 KB
Reliability MTBF Power on Hours
15,000 POH
Acoustics Noise level
55 dBA in ISO 7779 Sonic Pattern
Emulation
Epson ESC/P, IBM Proprinter
Standard Interface
Centeronics IEEE/P1284A Parallel , USB 2.0
Optional Interface
RS 232C Serial
Drivers
Windows 9X, NT 4.0, Me, 2000, 2003, XP, Vista, Windows 7, LINUX
Electronic Guide
HTML Based
Operating voltage
150 – 270V AC
Mains frequency
47 – 63 Hz
Power Standby
12W
Temperature
+5 to + 45ºC
Relative Humidity
10% to 80%
Size W x D x Hmm
608 x 379 x 147
Weight
7 kg
