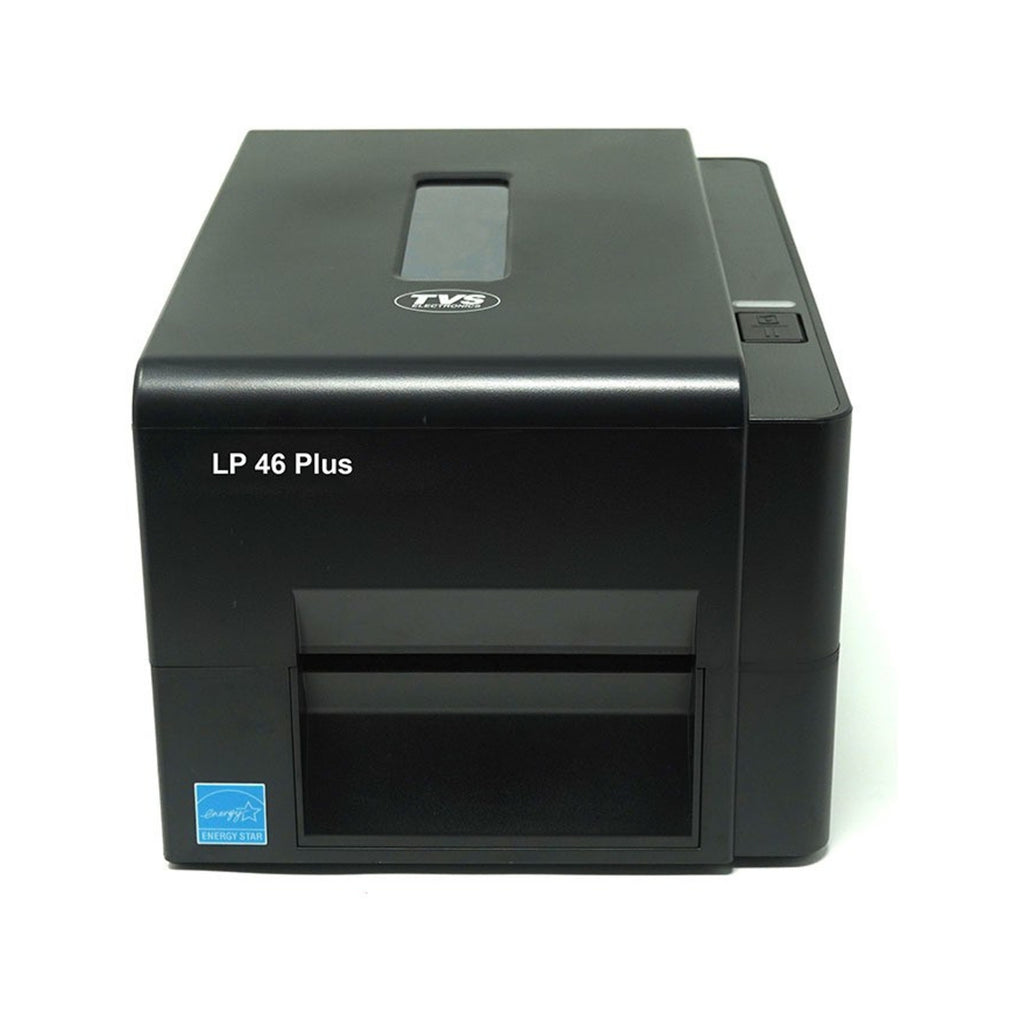

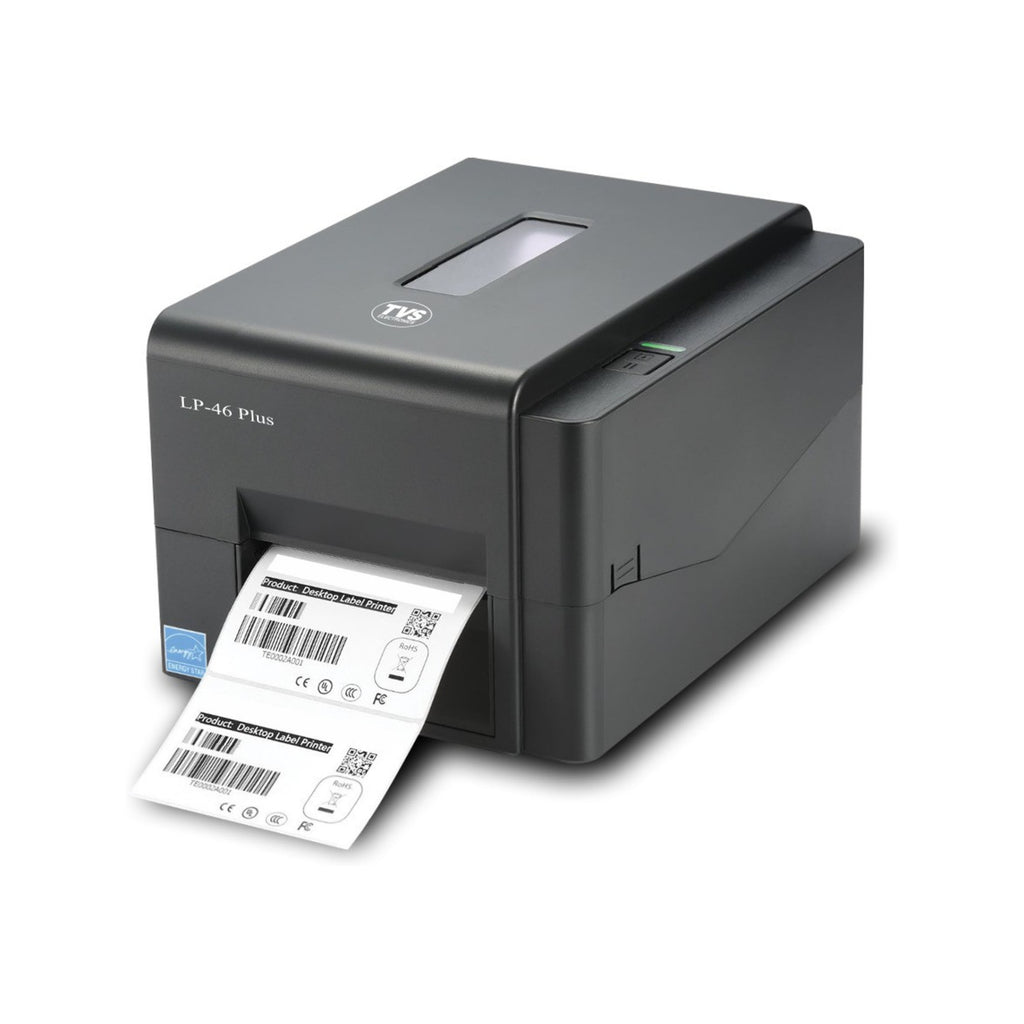

TVS ELECTRONICS LP 46 Plus Label Printer

Reliable 4-Inch Label Printing for Everyday Business Operations

The LP 46 Plus Desktop Label Printer is engineered for businesses that need dependable label printing without compromise. Designed with advanced printing technology, it delivers clear, high-resolution labels with consistent output, helping improve workflow accuracy across multiple industries.

Whether you are printing shipping labels, barcode labels, product labels, inventory tags, shelf labels, or packaging labels, the LP 46 Plus offers the performance and compatibility needed for demanding operations.

High-Speed Performance with Crisp Output

With a print speed of up to 152.4 mm (6 inches) per second and a print resolution of 203 DPI, this printer ensures quick label production while maintaining sharp text, barcodes, and graphics. It is a practical choice for businesses that require both speed and readability.

Direct Thermal and Thermal Transfer Flexibility

The LP 46 Plus supports both direct thermal and thermal transfer printing methods, giving users the flexibility to choose the right label type for short-term or long-term applications. This makes it suitable for a wide range of industries and labeling needs.

Large Ribbon Capacity for Better Efficiency

Equipped with a 300-meter ribbon capacity, the LP 46 Plus reduces the need for frequent ribbon changes, helping improve productivity and minimize downtime in busy work environments.

Multiple Connectivity Options

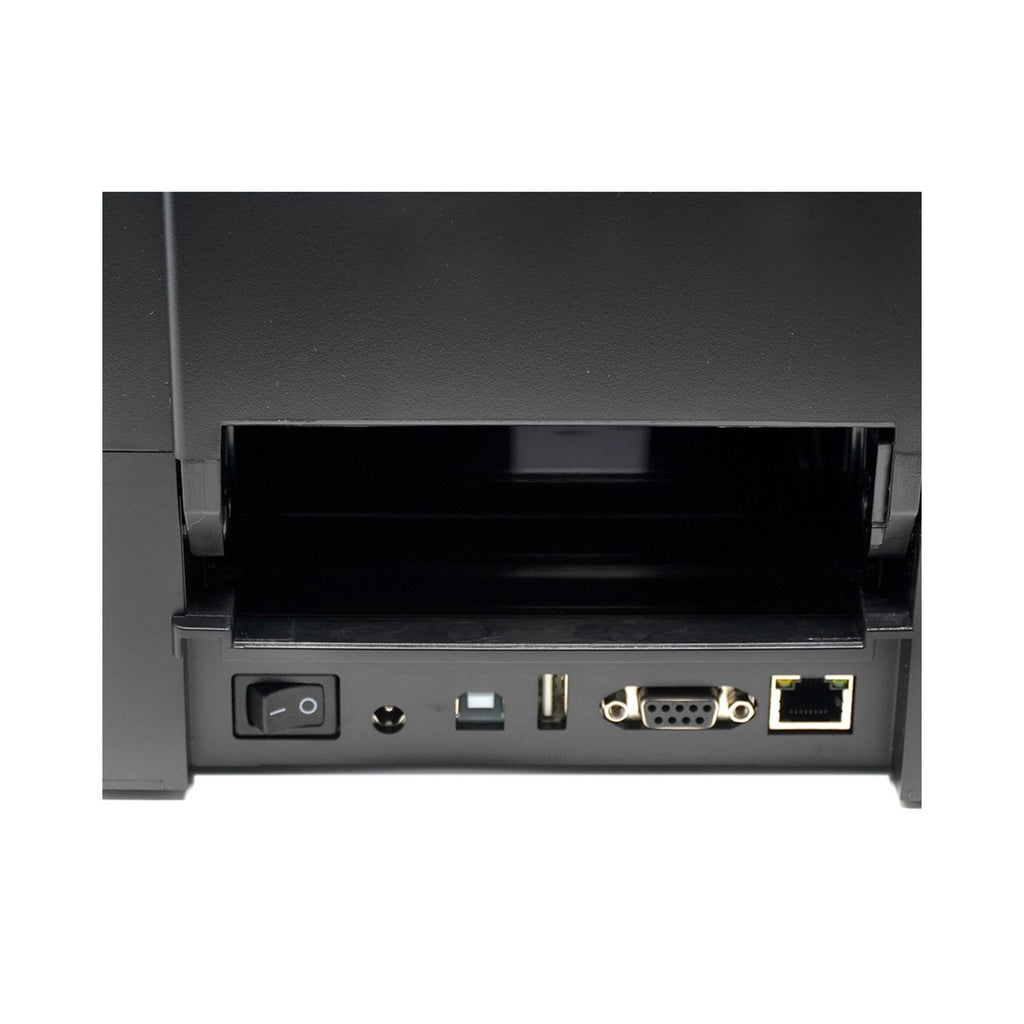

For seamless integration, the printer comes with triple interface support: USB, Serial, and Ethernet. This allows convenient compatibility with different systems and business setups, making it easier to deploy across workstations and networks.

Ideal for Multiple Industries

The LP 46 Plus is an excellent choice for:

• Retail stores

• Logistics and courier services

• Warehouses

• Hospitality businesses

• Manufacturing units

• Inventory and supply chain operations

Its compact desktop design, strong performance, and broad media support make it a dependable labeling solution for growing businesses.

Key Features

• 4-inch desktop label printer

• 203 DPI high-resolution printing

• Print speed up to 6 inches per second

• Supports direct thermal and thermal transfer printing

• 300-meter ribbon capacity for reduced downtime

• USB, Serial, and Ethernet interfaces

• Compatible with multiple barcode formats

• Suitable for retail, logistics, hospitality, warehouse, and factory use

• Compact design with dependable business-grade performance

Technical Specifications

General

• Model: LP 46 Plus

• Printer Type: Desktop Label Printer

• Printing Method: Direct Thermal / Thermal Transfer

• Resolution: 8 dots/mm (203 DPI)

• Max Print Width: 108 mm (4.25 inch)

• Max Print Speed: 152.4 mm (6 inch/second)

• Max Print Length: 2,794 mm (110 inch)

Physical Details

• Dimensions: 204 mm (W) x 164 mm (H) x 280 mm (D)

• Weight: 2.4 kg (5.29 lbs)

Ribbon & Media

• Label Roll Capacity: 127 mm (5 inch) OD

• Ribbon Length: 300 m

• Ribbon Max OD: 67 mm

• Ribbon Core: 1 inch

• Ribbon Width: 40 mm to 110 mm (1.6 inch to 4.3 inch)

• Media Type: Continuous, die-cut, black mark, fanfold, notched, outside wound

• Media Width: 20 mm to 112 mm (0.8 inch to 4.4 inch)

• Media Thickness: 0.06 mm to 0.19 mm

• Media Core Diameter: 25.4 mm to 38 mm (1 inch to 1.5 inch)

• Label Length: 5 mm to 25,400 mm

Hardware

• Processor: 32-bit RISC CPU

• Memory: 128 MB Flash, 64 MB SDRAM

• Interface: USB, Serial, Ethernet

Sensors

• Transmissive gap sensor

• Adjustable black mark reflective sensor

Power

• Input: AC 100–240V, 2.5A, 50/60Hz

• Output: DC 24V, 2.5A, 60W

Environment

• Operating Temperature: 5°C to 40°C

• Operating Humidity: 25% to 85% non-condensing

• Storage Temperature: -40°C to 60°C

• Storage Humidity: 10% to 90% non-condensing

Printer Language

• TSPLEZD, compatible with EPL, ZPL, ZPL II, DPL

Supported Barcode Formats

1D Barcodes

Code 128 UCC, Code 128 subsets A/B/C, EAN128, Interleaved 2 of 5, Code 39, Code 93, EAN13, EAN8, UPCA, UPCE, Codabar, Postnet, MSI, PLESSEY, China Post, ITF14, Code 11, TELEPEN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

2D Barcodes

GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417

Best For

The LP 46 Plus is best suited for businesses looking for a fast, durable, and versatile barcode label printer for:

• Shipping labels

• Product labels

• Inventory labels

• Barcode tags

• Shelf labels

• Packaging labels

• Warehouse and logistics labeling
