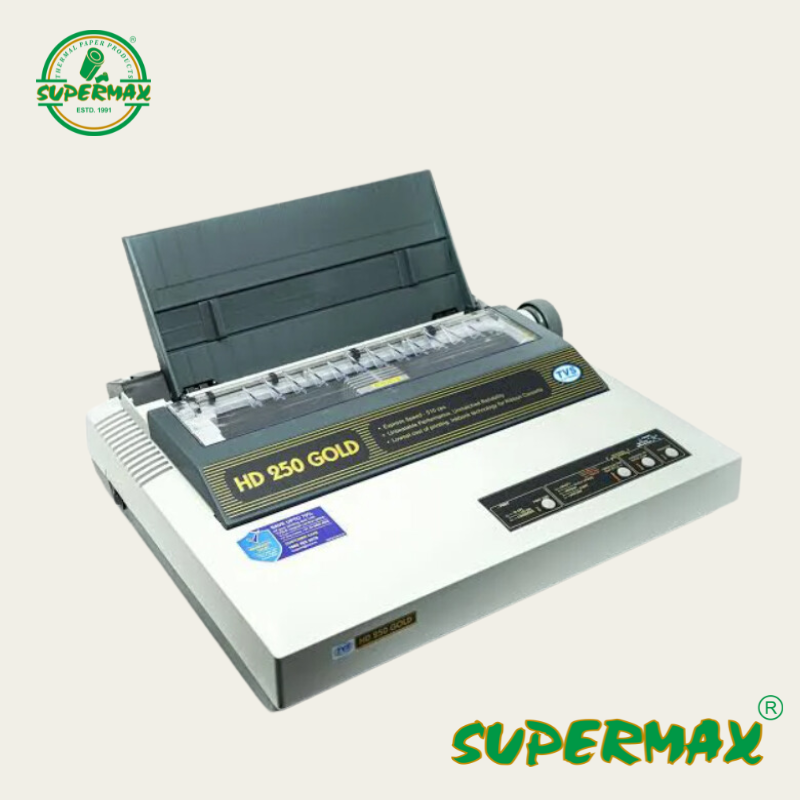

TVS HD 250 GOLD
Print Method
Serial Impact Dot Matrix
Print Direction
Bi directional Logic seeking
Print Head
Type 9 Wire
Print Width
80 Column
Paper Thickness
Print Head Life
200 million characters
Character Pitch cpi
15 12 10
High Speed Draft cps
430 – 516
Draft cps
368 – 442
Near letter quality cps
90 – 112
HS Draft
Standard 10, 12, 15, 17 & 20 cpi
Near Letter Quality
Roman, Sans Serif, Script
Resident bar code
Code 3 of 9, EAN13, EAN8, UPC-A, Interleave 2 of 5
Paper path standard
Top, Rear and Bottom
ContinuousTractor feed standard
Convertible push & Pull
Continuous form width
3.5 – 10 “
Cut sheets width
Paper thicknessmax
Tractor feed 0.3mm
Friction feed 0.3mm
Copy capability
1+5 with carbon(Max. page thickness of 0.52 mm)
Type
Ribbon Cassette with UniqueUser Replaceable Inkbank (Patented)
Colour
Standard black
Ribbon Life
40 Million characters
Cassette refill mode
Through Inkbank
Inkbank life
10 Million Characters
Input Buffer Kilo bytes
100 KB
Reliability MTBF Power on Hours
11,500 POH
Acoustics Noise level
49 dBA
Emulation
Epson ESC/P, IBM Proprinter
Standard Interface
Centeronics IEEE/P1284A Parallel , USB 2.0
Optional Interface
RS 232C Serial
Drivers
Microsoft® Windows® Operating System 95, 98, 98SE, 2000, Me, XP, Vista, NT 4.0, Linux Redhat
Electronic guide
HTML based
Operating voltage
150 – 270V AC
Mains frequency
47 – 63 Hz
Power Standby
12W
Temperature
+5 to + 45ºC
Relative Humidity
10% to 80%
Size W x D x Hmm
433 x 379 x 147
Weight
5.7 kg
