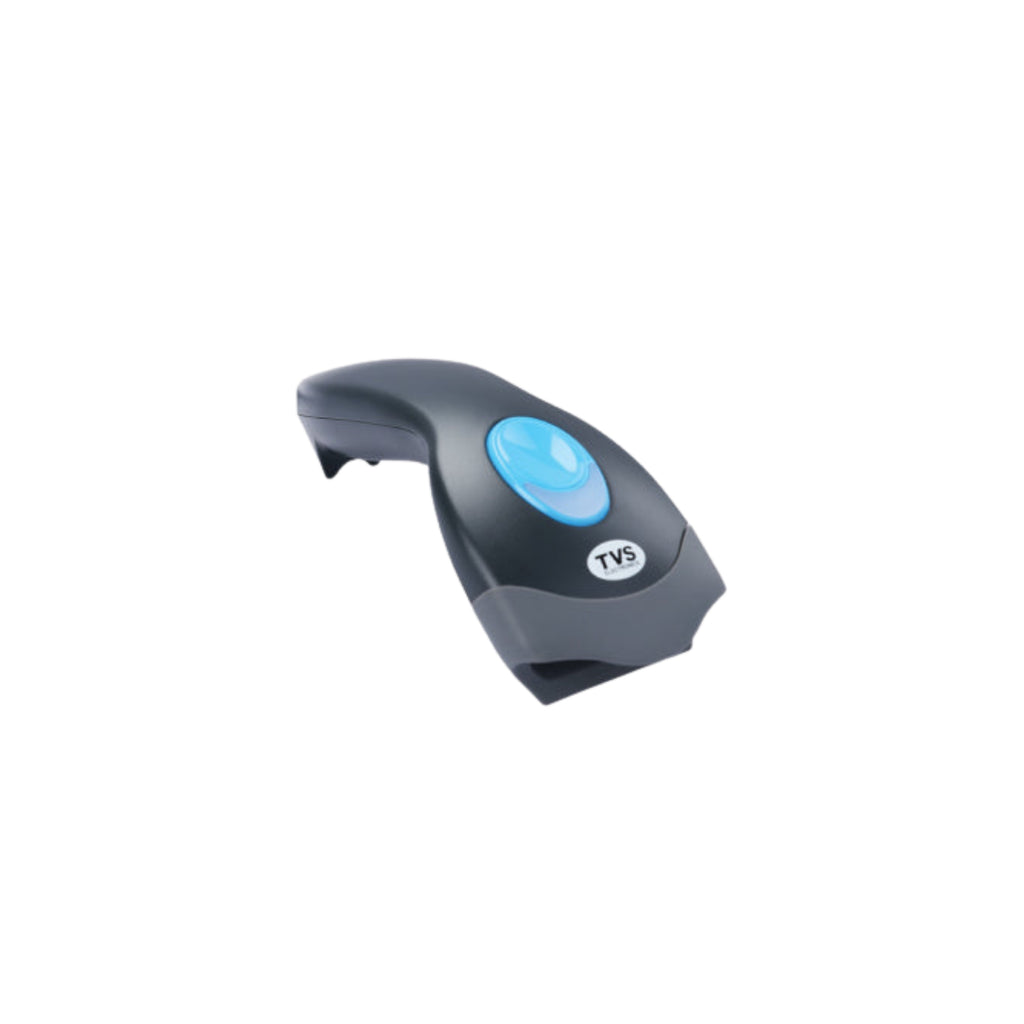

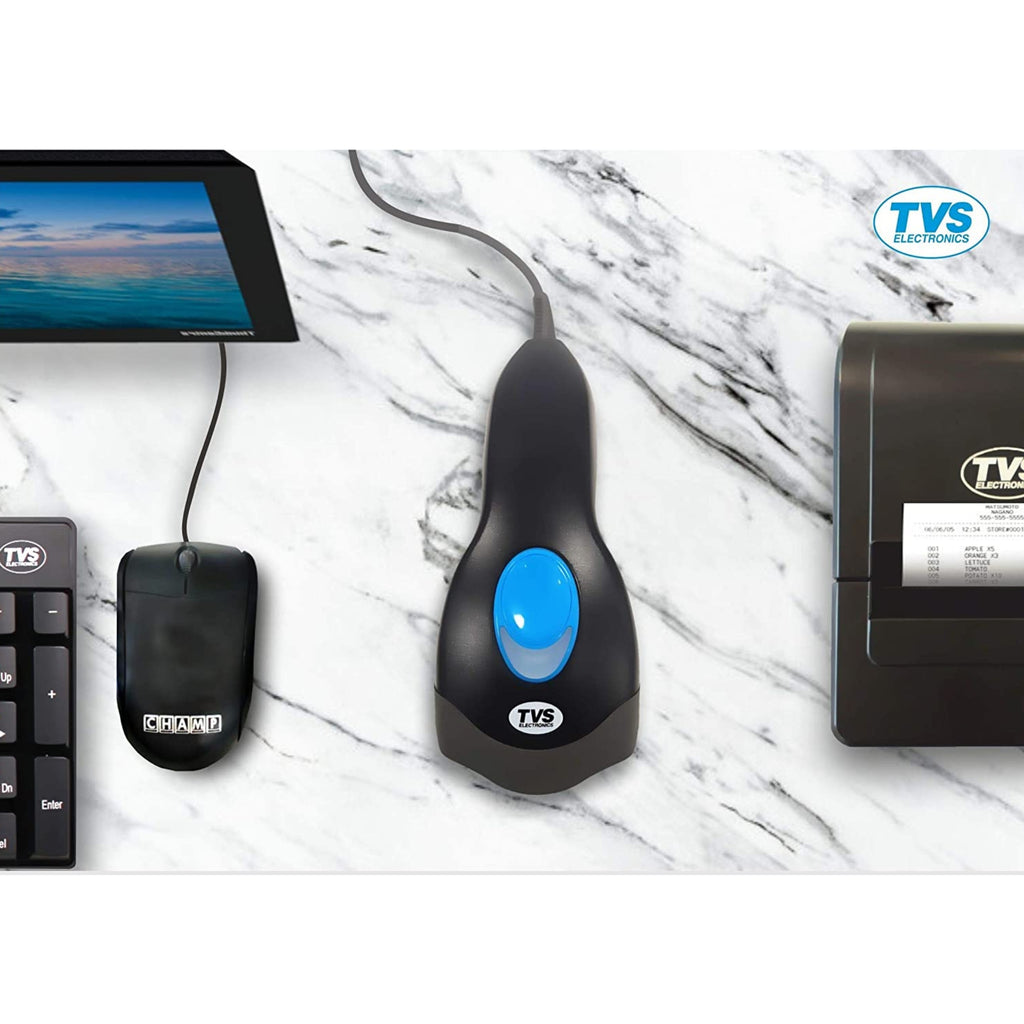

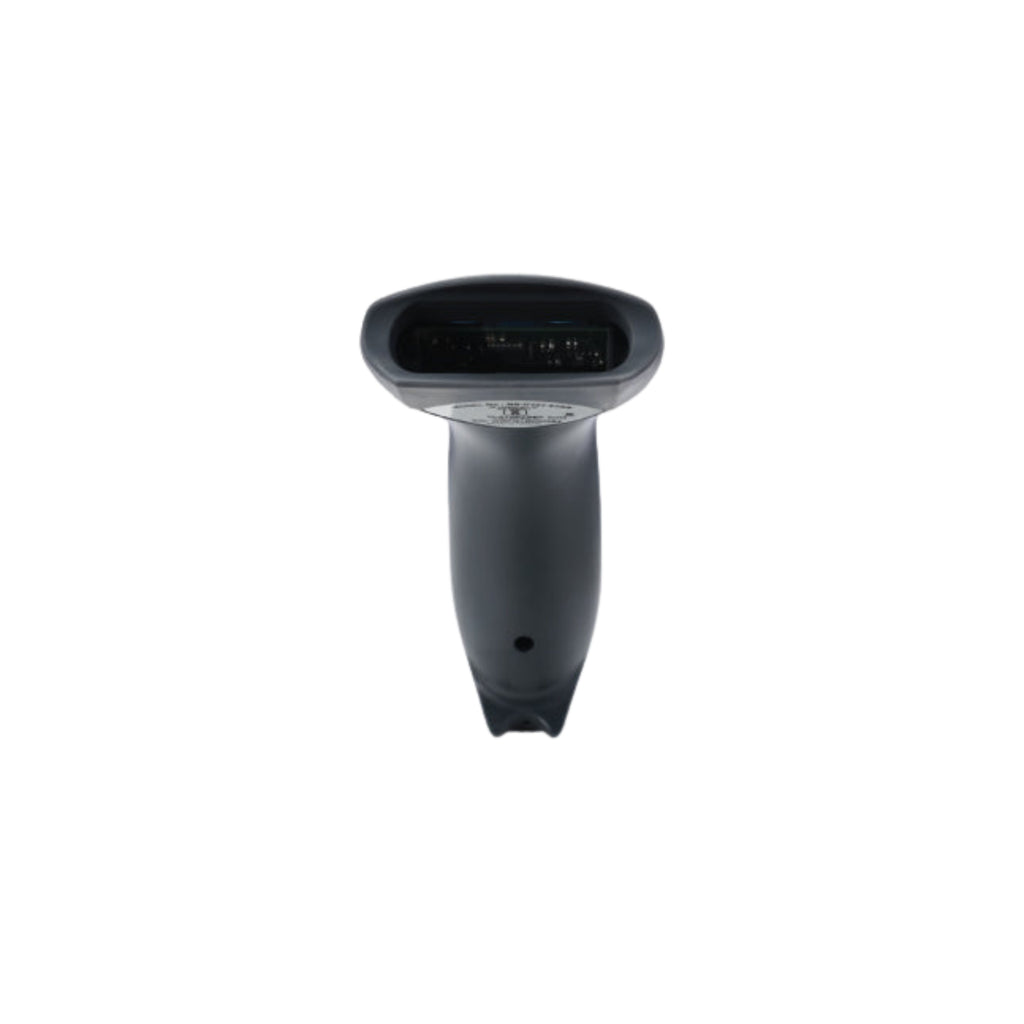

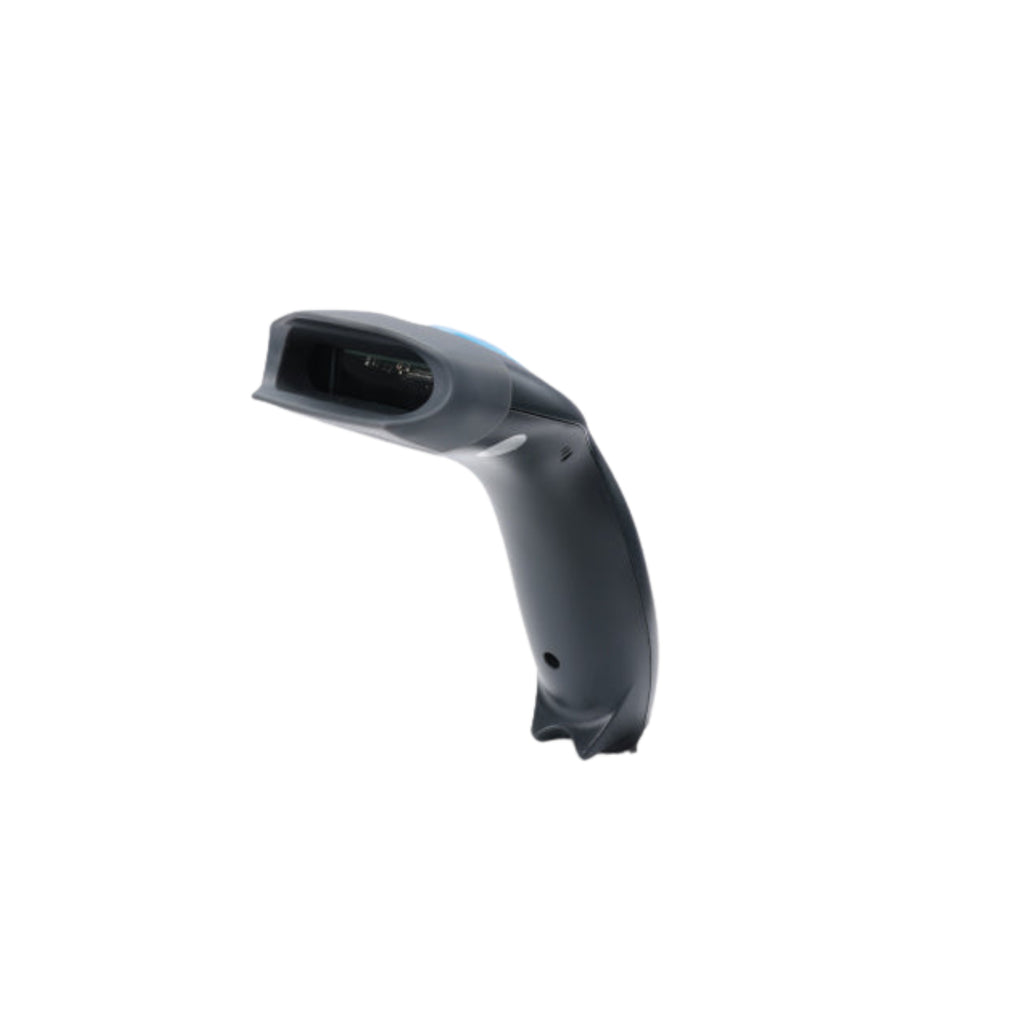

TVS Electronics BS-C101 Star Barcode Scanner

TVS Electronics BS-C101 Star Barcode Scanner

Rs. 2,350.00
Rs. 2,550.00 Rs. 2,350.00
Sale Sold out
Shipping calculated at checkout.
The all new BS-C101 Star is the fastest scanner in this segment and is loaded with features. It represents high-durability and faster customer checkouts, with an unbeatable first read scan success rate. It’s highly functional and is a great business companion.

SPECIFICATIONS:

Light Source:650 nm visible laser diode VLD

MPU:32 bit

Depth of Field:35 200 mm UPC/EAN 100%, PCS=90%

Scan Rate:330 scans per second

Scan Angle:52°

Pitch / Roll / Skew angle: 65° / 30° / 65°

Minimum Bar Width: 4 mil @ PCS=90% Code 39

Print Contrast: 30% @ UPC/EAN 100%

Indicators LED:Three colour LED green, red & blue

Beeper Option:Programmable tone & beep time

System Interfaces:Keyboard, RS232C, HID USB, wand

Physical Dimensions:L106.7 x D58.0 x H155.0 mm device only

Weight:148 g stand excluded

Cable:Standard 2.0M straight

Input  Voltage:5 VDC ±10%

Power Consumption:1.0 watts

Operating Current:200 mA

Laser Class:CDRH Class Iia: IEC 608251: Class 1

EMC:CE & FCC DOC compliance, VCCI, BSMI

Operating Temperature:0°C – 40°C, 32°F – 104°F

Storage Temperature: 20°C – 60°C, 4°F – 140°F

Operating Humidity:5% – 95% RH noncondensing

Light Levels: 4,500 Lux fluorescence

Drop Durability: Designed to withstand 1.0 M drops

Barcode: Most popular 1D barcodes, incl. GS1 DataBar & PDF 417
